Remote temperature adjustment for central heating from your web portal
Large display can be clearly read with the background lighting
The display shows the set temperature as well as the measured temperature, time.
Timers, to schedule temperature adjustments
Timers, to schedule hot water on/off
Group temperature adjustment, allowing you to group multiple devices and operate as one
Triggers

Safety, Reliability & Warranty

If you do not install and use in accordance with this guide (or the quick start guide) the warranty will be invalidated and Sandal Plc will not be liable for any damage or loss whatsoever, including indirect loss, damage to property or personal injury.

Please also do not leave packaging material lying around as children may be tempted to play with it, which could be dangerous.

Environment

This product is intended for domestic, commercial and light industrial use only and must only be used in dry areas indoors, and protected from moisture and water ingress. Please also read the Product Specification section in this guide for additional environmental considerations.

Overloading

The product relays are rated at 5 Amp/1200 Watts and care must be taken not to overload the product, which may cause the product to overheat and become damaged.

For more information on overloading please visit https://www.electricalsafetyfirst.org.uk/guidance/safety-around-the-home/overloading-sockets/

Please only connect appliances which are CE/UKCA marked to the product. This will ensure a higher degree of safety and electrical compatibility between the product and the connected appliances.

Nearby heat sources

Keep the product away from heat sources which can generate temperatures higher than the products operating temperature range, as specified in the Product Specification section.

Reliability

Your Energenie Solutions product relies on a good stable internet connection to function as intended. If the internet connection is poor, or at risk of dropping, or the product is out of range (over 30 m) from your Gateway, your device’s reliability will be impacted.

Interference from other radio transmitting products

Keep other electronic devices with radio transmitters, or appliances with motors, fans etc. away from the product; 1 metre separation distance is a general rule of thumb.

Disassembling the product

Other than to fit, remove or replace batteries, no part of the unit should be disassembled. The product does not contain any parts that can be serviced. If it arrives faulty or develops a fault while within warranty please return the product to where it was purchased from.

Other Notices

THIS DEVICE AND ASSOCIATED SOFTWARE (INCLUDING FIRMWARE) ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH-RISK APPLICATIONS"). YOU AGREE AND ACKNOWLEDGE THAT YOU HAVE NO LICENSE TO, AND SHALL NOT (AND SHALL NOT ALLOW A THIRD PARTY TO) USE THE PRODUCT IN ANY HIGH-RISK APPLICATIONS, AND WHERE PERMITTED BY LAW SANDAL PLC SPECIFICALLY DISCLAIMS ANY WARRANTY REGARDING, AND ANY LIABILITY ARISING OUT OF, HIGH-RISK APPLICATIONS.

Getting Started

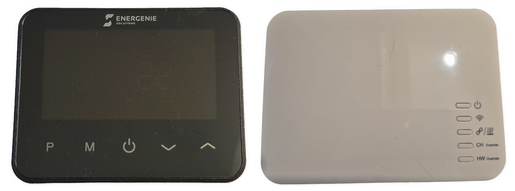

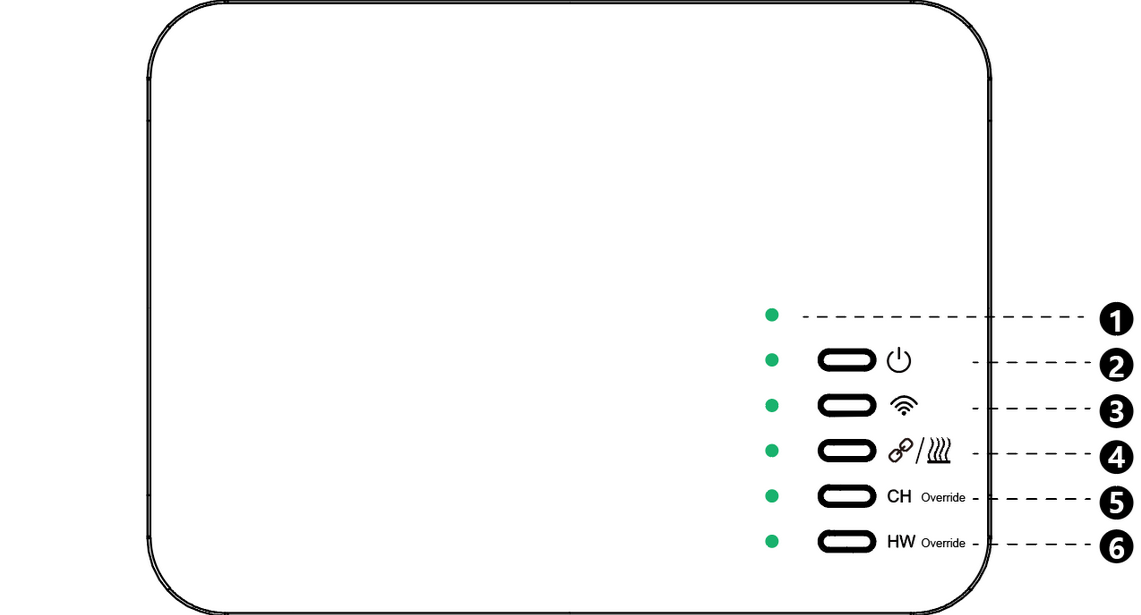

Hot water heating on indicator
Receiver ON/OFF Button & indicator
WIFI Pairing button & WIFI connection indicator
RF Pairing button & Central Heating on indicator
Central Heating Override button & indicator
Hot Water Override button & indicator

Prepare Thermostat for installation

To use the MIHO069-W Thermostat and WiFi Receiver you will need a working WiFi Router a mobile phone with the Espressive Provisioning app (ESP BLE Provisioning) and an Energenie Solutions Account.

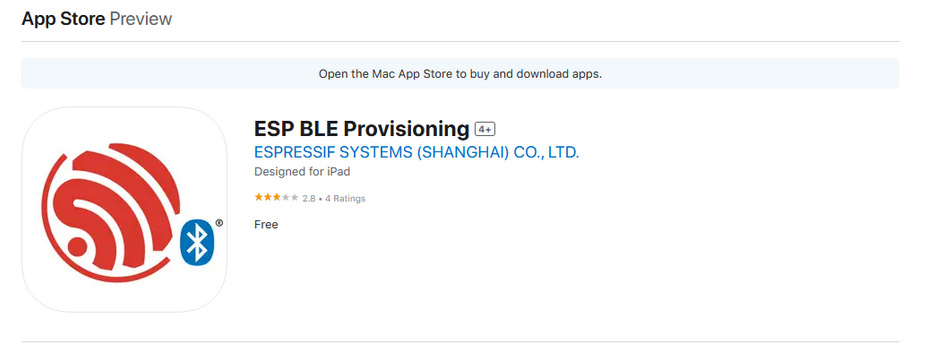

Download the app from the Play Store or Apple Store

Play Store

Apple Store

To Prepare the Thermostat

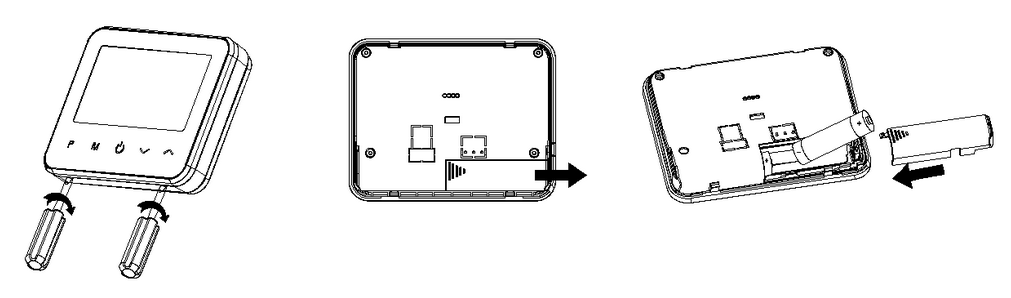

Remove the Mounting Plate and Battery Cover
Insert 2x AA batteries ensuring they are the correct orientation
Replace the Battery Cover

To Prepare the Receiver

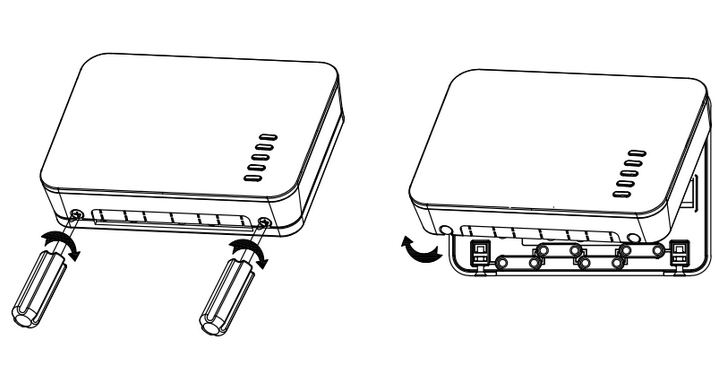

Using a small screwdriver, slightly loosen the screw located at the base of the RF-Switch.
You can then carefully separate the front panel from the back plate.

Installation

The MIHO069-W Requires direct connection of the Receiver to the boiler for it to function. The Thermostat can be powered either by battery, or USB supplied power.

Receiver Connection

Turn Off and isolate the power to the combi-boiler, central heating supply or electric heater.
Remove the existing thermostat, if fitted

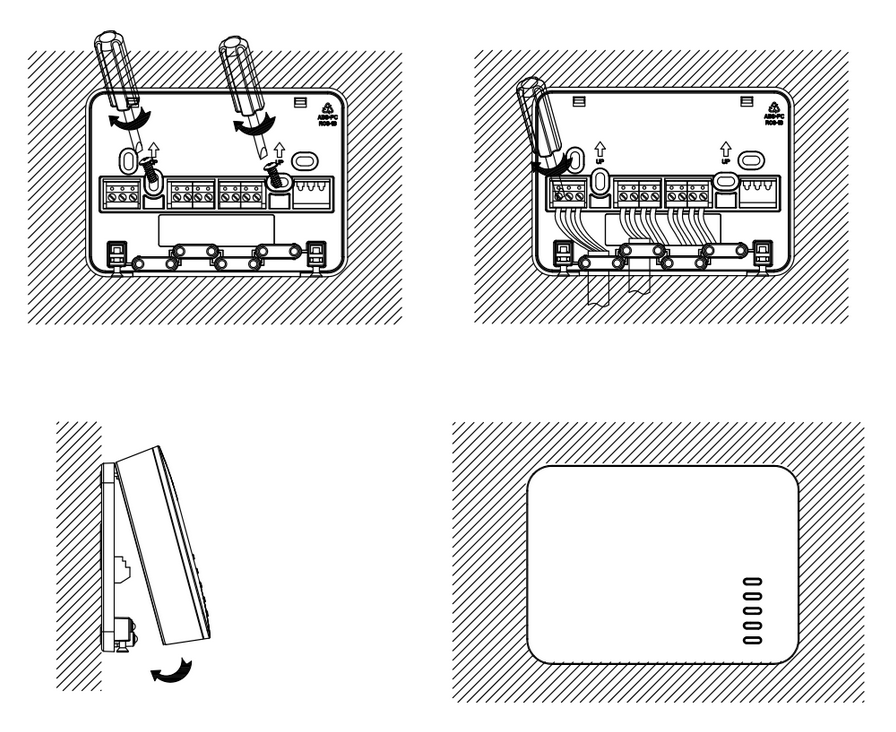

Position the backplate on the wall, fixing in place using scrws provided.
Terminate the cables to the Receiver as shown in the wiring diagram.
Connect the Live Neutral and Earth from the boiler (or existing thermostat supply) to the Live Neutral and Earth on the left side of the backplate.
Connect the Live and Switched Live for your Room Thermostat connections to the Central Heating (CH) Normally Open (NO) and COM terminals on the connection box. If the cable is rigid, you should be able to insert them directly (Alternatively, use the Normally Closed (NC) terminal if it is required for your specific boiler).
Connect the Live and Switched Live for your Hot Water connections to the Hot Water (HW) Normally Open (NO) and COM terminals on the connection box. If the cable is rigid, you should be able to insert them directly (Alternatively, use the Normally Closed (NC) terminal if it is required for your specific boiler).

N.B. Each manufacturer uses different connections on their boilers for the room thermostat and if you are unsure of the connections to your boiler, you should seek assistance from a qualified boiler installer.

Thermostat Mounting

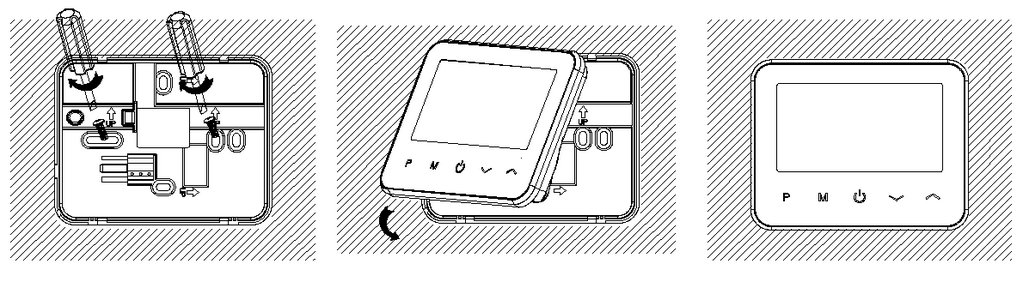

Mark 2 hole positions on the wall using the back plate as a positioning template.
Drill at the marked positions and insert a wall plug into each hole.
Screw the thermostat back plate securely on the wall.
Mount the Thermostat to the back plate

The Thermostat has two USB sockets to allow for mains power. One on the back, one on the left side. The rear mount could be used to hide the power feed in the wall cavity.

Linking the Thermostat to the Receiver unit

The Thermostat will need to be linked to the Receiver before it can be linked to your account. Ensure both units are on.

Press and hold the RF Pairing button (4) on the receiver for 4 seconds, release and confirm the LED next to the button is flashing slowly.
Ensure the Thermostat screen is off
Press and hold the M button on the Thermostat until code and shows on the screen, then press the button.

Wait for a while, when the LED on the receiver stops flashing, the pairing has succeeded.

Set up & Control of the Thermostat

Provisioning the Thermostat Receiver

Step1

Press and hold the WIFI Pairing button (3) on the Receiver

Step 2

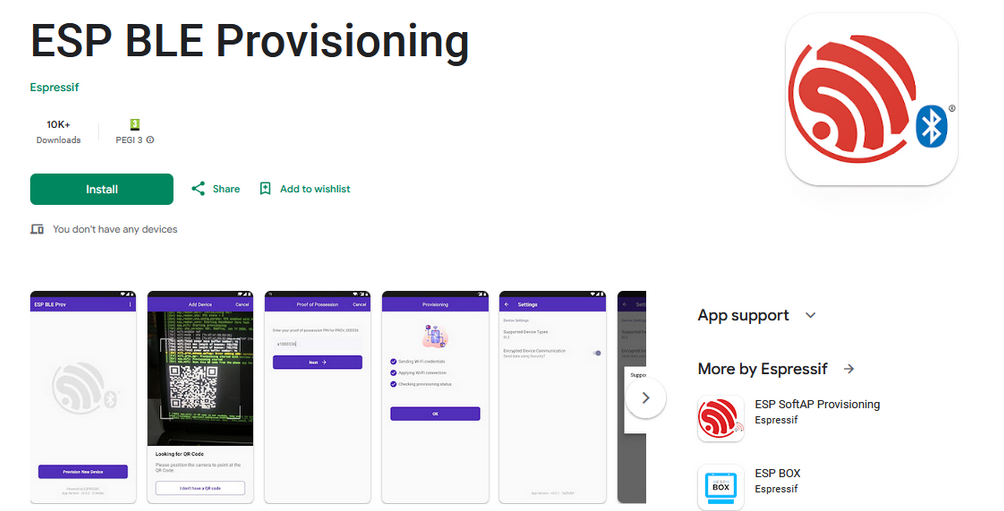

Open the ESP BLE Provisioning app.

Step 3

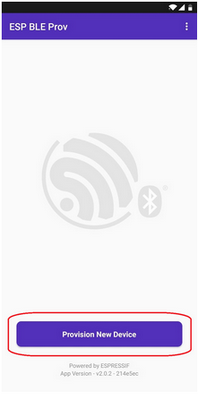

Select Provision a New Device (the first time you do this, allow notifications and location sensing)

Step 4

Scan the QR code on the unit, or select I don’t have a QR code

Using QR Code

Step 5a

Confirm the WiFi indicator stops flashing and is solid on. If this does not occur,

No QR code

Step 5b

Select the device that appears on the the list and select provision

Step 6

Select the Wi-Fi network the device will be on and enter the Wi-Fi password

Step 7

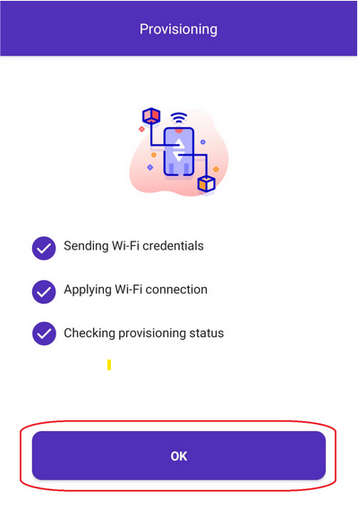

Select provision device and wait for the connection to be confirmed. Confirm the provisioning by selecting the OK button

Step 8

Open the Energenie Solutions web portal and sign into your account.

Step 9

Go to the My Devices tab

Step 10

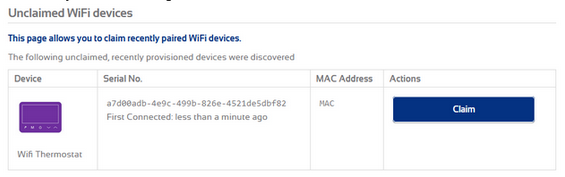

Select the Claim a Wi-Fi meter or thermostat option

Step 11

Check for your device using the serial number on the unit and select the Claim button

Step12

At this point, the device list will be populated with the device

The Thermostat is now ready for use.

Controlling the Thermostat - Local control

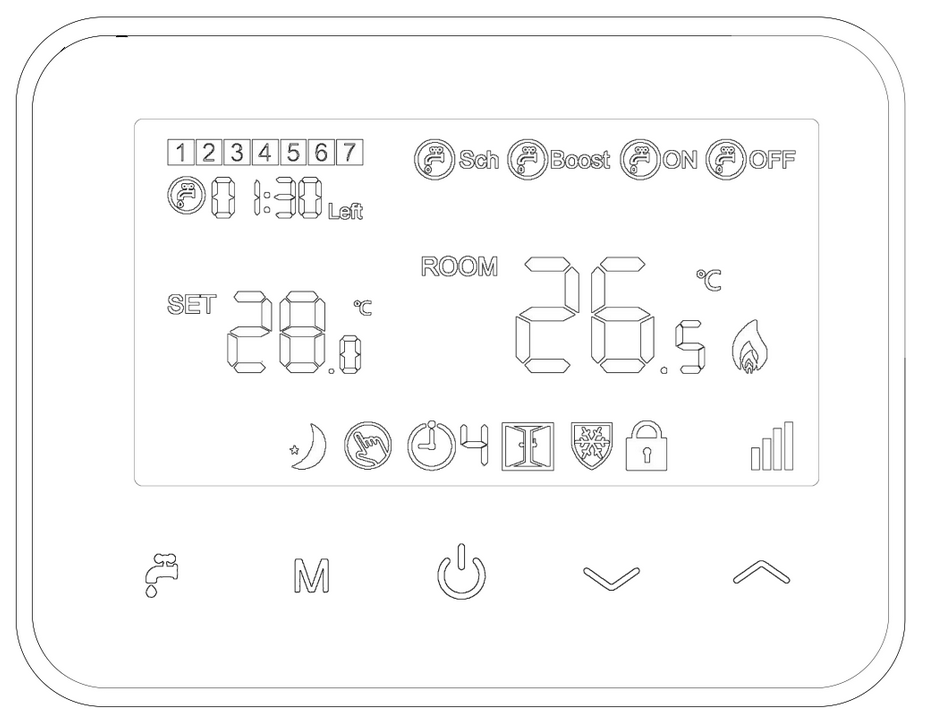

The Thermostat has various buttons and symbols. A break down of these is below:

1	Week Day	6	Heating Mode Select	11	Temperature Up
2	Time/Hot Water Boost	7	Power/Screen On/Off	12	Pairing Symbol
3	Room Target Temperature	8	Frost Protection icon	13	Heating On icon
4	Heating Mode (ECO/MANUAL/PROGRAM)	9	Temperature Down	14	Current Temperature
5	Hot Water Mode select	10	Child Lock icon	15	Hot Water Mode

The system allows you to control the system using the buttons on the front of the Thermostat; Hot Water mode (5), Heating Mode (6), Power/Display (7),
Temperature Down (9), Temperature Up (11)

Display On/Standby

The Thermostat display will be on as long as mains power is supplied. If you wish to turn the display off, press the power button (7) once. If you wish to view the display, press the power button again to turn the display on.

Central Heating – Control

Central Heating Mode

The central heating system can be set to Manual, Eco and Program modes. Manual mode is normal operation and the unit will be in this by default. Eco mode is the standby mode for central heating. Program mode uses the timers stored on the thermostat (optional).

To change the mode, press the Heating Mode Select button (7) on the thermostat

Adjust Target temperature

The central heating target temperature can be manually set using the Temperature Up (11) and Temperature Down (9) buttons.

Frost Protection

Frost Protection will turn the central heating on if the room temperature drops below 5°C. This will happen even in ECO mode.

Hot Water – Control

Hot Water Mode

The Hot water mode can be cycled by pressing the Hot Water Mode select button. Pressing the button will cycle through Off/On/Sch/Boost 30/60/90/120/150 (while the symbol (15) is showing boost, the time (2) will show 30 minute increments before the mode returns to Off

Boost Mode

When a Boost time is set, the Hot Water relay will switch on and will remain on until the time set has been reached, at which point the mode will revert automatically to Off

Child Lock

If the Child Lock symbol is showing, you will be able to turn the screen on and off, but you will not be able to set a target temperature or change the hot water or central heating modes locally. The child lock can be set on the server only.

Controlling the Thermostat - Website

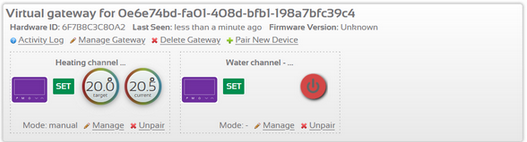

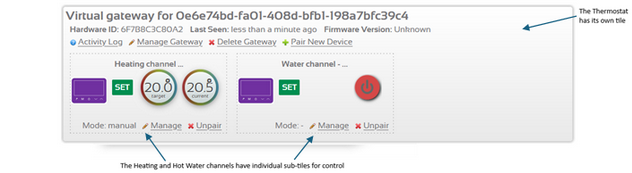

Dashboard layout description

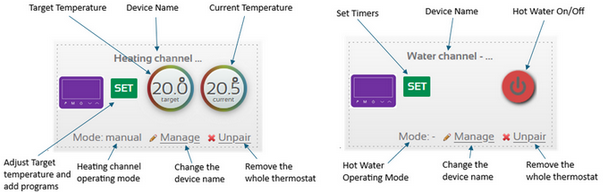

The channel tiles provide current information and control options specific for that channel

Heating Control – Temperature

Step 1

Select the SET button on the Heating Channel device tile

Step 2

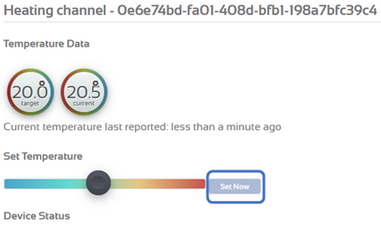

Drag the slider to the desired temperature (between 12 ℃ and 30 ℃). Select the Set Now button to confirm your choice

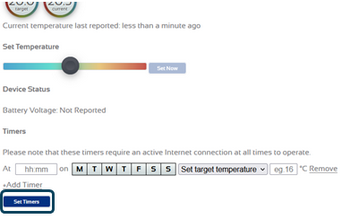

Heating Control – Setting Timers

Timers are set on the same pase as the temperature.

Step 1

Select the +Add Timer option on the page to add a blank timer.

Step 2

Enter a time (in 24 hour format) with a colon ( : ) between the hours and minutes

Step 3

Select the days you want the timer to trigger on by highlighting as necessary.

Step 4

Select the drop-down box next to the days and select Set target Temperature.

Step 5

Enter the target temperature you want for that time. Ensure that the temperature is set between 12℃ and 30℃ (temperature must by entered as a whole number and not include a decimal point).

Step 6

When happy with your timers, select Set Timers to confirm.

Central Heating – On/Off

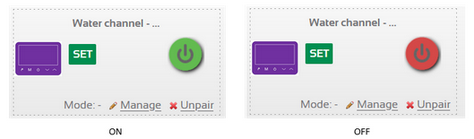

Central Heating can be toggled between on and off using the button on the device tile. Selecting the tile toggles between on (green) and off (red)

Central Heating – Setting Timers

Step 1

Select the SET button on the Heating Channel device tile

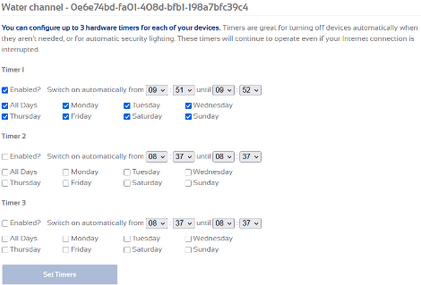

There are three timers available to be set

Step 2

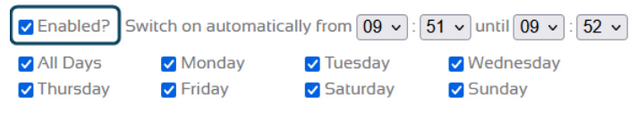

Enable the timers you wish to use by ticking the Enable box next to the timer

Step 3

Select either each day the timer will run on, or select the All Days option below the timer

Step 4

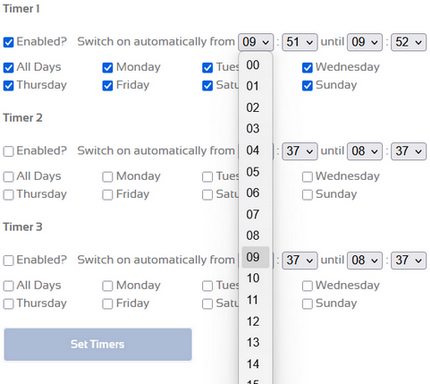

Set the from and until times for the timers using the drop-down windows

Step 5

Select the Set Timers option to confirm the timers

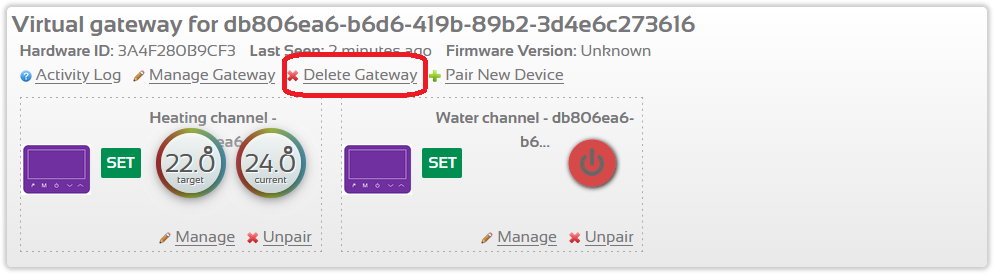

Unpairing your WiFi Thermostat

To unpair your WiFi thermostat and remove it from your account, go to the device on your web portal and select the x Delete Gateway option.

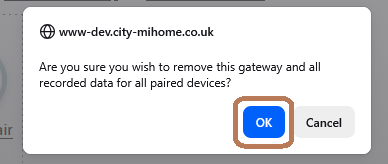

Confirm the selection by selecting OK on the window that pops up

The Thermostat will be removed from the account.

Troubleshooting & Further Help

This part of the guide provides help on addressing the most common issues that may arise when setting up and using your Thermostat.

If this guide does not address the issue and/or you wish to contact our UK based support team please email us using the unique contact address you were provided by our Sales team

Pairing Issues

Problem	Possible Causes	Resolution
The Thermostat does not pair with the Relay	No power to the Thermostat (display will not turn on when a function button is pressed.	Ensure the USB cable is correctly fitted and power is on at the socket If backup batteries are fitted, ensure the polarity is set correctly
The Thermostat does not pair with the Relay	No Power to the Relay (LEDs on front of relay do not light up when buttons pressed)	Ensure the power is connected correctly and the mains power is on.
The Relay doesn’t provision	No power to the Relay	Ensure the power is connected correctly and the mains power is on.
The Relay doesn’t provision	The relay is not in pairing mode	Press and hold the WiFi Pairing button (3) untli the LED next to it begins to flash and try again. If the LED does not begin to flash, contact Energenie Solutions technical support.

Operational Issues

Problem	Possible Causes	Resolution
I've finished the pairing process but, I can't control the Thermostat through the web portal	Internet connectivity Issues	Check internet connectivity of your router and your Gateway (MIHO001) and follow the Troubleshooting Guide if there are any connection issues.
	The Thermostat may be out of range of your WiFi router	Reduce range between Thermostat and Router.
	Interference from other radio transmitting devices	Ensure that there are no other radio transmitting appliances, such as cordless phones within 50 cm of the Thermostat and the Gateway
	Your phone/laptop/tablet may have disconnected from WiFi or your mobile data may be switched off.(or you have run out of data on your mobile data plan)	Check that mobile data (if outside of WiFi network range) or WiFi is switched on, on your phone (refer to your phone’s user manual)
The Thermostat can be controlled from the web portal but the central heating does not turn On or Off	The Thermostat is set to eco mode	Select the M button from the front of the unit and cycle to manual mode
	The Thermostat has not been correctly connected to the central heating system.	Have the connection setup checked by a qualified installer.

Disposal

The crossed out wheelie bin symbol which is marked on your product indicates that the product must not be disposed of with regular household waste, but must be disposed of at your local recycling centre. You may also returned to Energenie Soulutions for recycling at your convenience. Please visit our website for more information

https://energeniesolutions.com/weee-weeeco-information.

Product Specification

Thermostat operating voltage:	2*AA battery power (excluded) or 5V/1A (included)
Receiver operating voltage:	230 VAC, 50/60 Hz
Maximum voltage / (ohmic) load:	230 VAC/10(2)A
Frequency:	868 MHz& WIFI 2.4Ghz
Switching options:	7 days, 6 periods each day (optional timers) or unlimited server timers
Receiver switch contacts:	NO and NC.
Accuracy:	+/- 0.5°C
Temperature settings:	5°C ~ 35°C, 0.5°C increments
Thermostat dimensions:	Surface mounted, 1259823.5MM
Receiver dimensions:	Surface mounted, 130* 95*26 mm
IP protection rating:	20

Registration of Product (Safety Alert Purposes Only)

Energenie Solution products are tested by independent accredited laboratories to all applicable national and international standards, and manufactured under strict quality control procedures.

If our products are used as intended, in accordance with their user manuals, it is very unlikely that problems will occur with the product.

However we are not complacent and take our responsibility seriously to inform you, our customer should any product safety concerns arise which we need to advise you of.

Declaration of Conformity

We, Sandal PLC, 12 Ducketts Wharf, South Street, Bishop's Stortford, Essex, ENGLAND, CM23 3AR

Declare under our sole responsibility as importer that the product:

Model: MIHO069-W

Description: Thermostat with WiFi Receiver

To which this declaration relates is in conformity with the applicable requirements of the following Union harmonisation legislation:

2014/53/EU Radio Equipment Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances (RoHS) Directive
2012/19/EU The Waste Electrical and Electronic Equipment Directive (WEEE Directive)

And is in conformity with the following standards:

EN IEC 62368-1:2020+A11:2020
EN 50665:2017
ETSI EN 300 220-1
ETSI EN 300 220-2
ETSI EN 300 328
ETSI EN 301 489-1
ETSI EN 301 489-3
ETSI EN 301 489-17

The Technical Construction File required by the above Directives is maintained at the company headquarters at Energenie Solutions, 12 Ducketts Wharf, South Street, Bishop's Stortford, Essex, ENGLAND, CM23 3AR

I hereby declare, on behalf of Energenie Solutions, that the equipment named above has been tested and found to comply with the relevant sections of the above referenced specifications. The unit complies with all essential requirements of the Directives.

Signed:

Name: C R Pittom
Position: Quality & Certification Manager
Place of signature: 12 Ducketts Wharf, South Street, Bishop's Stortford, Essex, ENGLAND, CM23 3AR

On: 09/07/2025

PSTI Declaration

Product: Energenie Solutions WiFi Thermostat

Part: MIHO69-2
Manufacturer: Energenie Solutions
12 Ducketts Wharf,
South Street,
Bishop’s Stortford,
Hertfordshire,
CM23 3AR

We, Energenie Ltd., hereby declare that the above-mentioned product complies with the security requirements set forth in the Product Security and Telecommunications Infrastructure Act 2022 (PSTI Act 2022) and the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.
Features Implemented: - Unique, non-default passwords for each device - Secure software update mechanisms - Clear process for reporting and addressing security vulnerabilities Compliance has been verified through rigorous internal testing and third-party certification.

Signed:

Name: C R Pittom
Position: Quality & Certification Manager
Place of signature: 12 Ducketts Wharf, South Street, Bishop's Stortford, Essex, ENGLAND, CM23 3AR

On: 09/07/2025

Our PSTI Policy can be found at https://sandal.zendesk.com/hc/en-us/articles/27252951232669-PSTI-Policy

Copyright Notice

©2025 Sandal PLC
Part No: MIHO69-W
Registered office: Price Bailey, Causeway House, 1 Dane Street, Bishop's Stortford,
Hertfordshire, England,CM23 3BT

Version 1 09/07/2025

Table of Contents

Introduction

What is in the box

Key Features

Safety, Reliability & Warranty

Environment

Overloading

Nearby heat sources

Reliability

Interference from other radio transmitting products

Disassembling the product

Other Notices

Getting Started

Prepare Thermostat for installation

Installation

Receiver Connection

Thermostat Mounting

Linking the Thermostat to the Receiver unit

Set up & Control of the Thermostat

Provisioning the Thermostat Receiver

Controlling the Thermostat - Local control

Central Heating – Control

Hot Water – Control

Controlling the Thermostat - Website

Heating Control – Temperature

Heating Control – Setting Timers

Central Heating – On/Off

Central Heating – Setting Timers

Unpairing your WiFi Thermostat

Troubleshooting & Further Help

Pairing Issues

Operational Issues

Disposal

Product Specification

Registration of Product (Safety Alert Purposes Only)

Declaration of Conformity

PSTI Declaration

Product: Energenie Solutions WiFi Thermostat

Copyright Notice

Related articles
