MIHO069-2 WiFi Thermostat Technical Specifications

The MIHO069-2 comprises two components, the Thermostat Unit and the Relay Unit

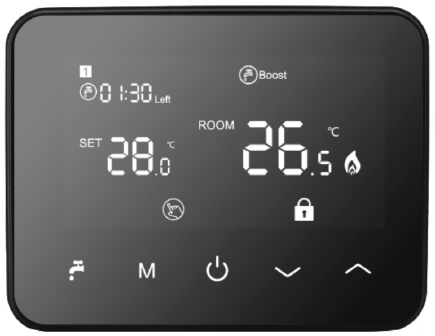

Thermostat Unit

Thermostat power:                           5V/1A USB-C with 2xAA battery backup

Thermostat Frequency:                    868MHz (to relay)

Channel Selection:                           By programming the thermostat and the receiver.

Switching options:                           (Central Heating) 7 days, 6 periods each day.

                                                         (Hot Water) 7 days, 6 periods each day.

Temperature settings:                      5°C ~ 35°C, 0.5°C increments

Accuracy:                                         +/- 0.5°C

Thermostat dimensions:                  Surface mounted, 125*98*23.5mm

Colour:                                             Black

IP protection rating:                        20

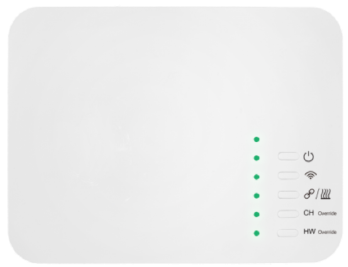

Relay Unit

Relay power:                                     230VAC, 50/60 Hz

Max load (Heating/Hot Water)        230VAC, 10A

Relay Frequency:                              868 MHz (to Thermostat)

                                                         2.4GHz (WiFi)

Channel Selection:                           By programming the thermostat and the receiver.

Receiver switch contacts:                 Normally Open (NO) and Normally Closed (NC)

Relay dimensions:                            Surface mounted, 130* 95*26 mm

Colour:                                             White

IP protection rating:                         20
