What is in the box

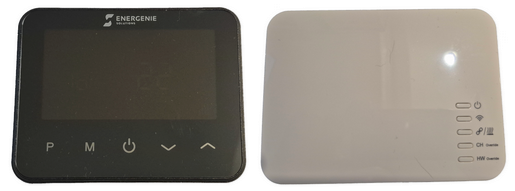

1x Thermostat
1x Receiver Unit
2x AA batteries
2x Pair of Screw and wall plugs
Getting Started
Thermostat
Remove Back cover of the Thermostat, remove battery cover, and insert batteries. Replace battery cover.
Receiver

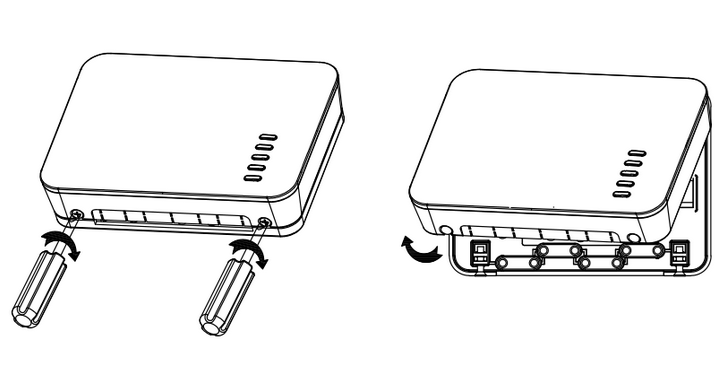

Using a small screwdriver, slightly loosen the screw located at the base of the RF-Switch. You can then carefully separate the front panel from the back plate.
Installation
The MIHO069-W Requires direct connection of the Receiver to the boiler for it to function. The Thermostat can be powered either by battery, or USB supplied power.
N.B. If the MIHO069-2 is not USB Powered, the Thermostat will provide updates every hour as opposed to every minute
Receiver Installation
- Turn Off and isolate the power to the combi-boiler, central heating supply or electric heater.
- Remove the existing thermostat, if fitted
- Position the backplate on the wall, fixing in place using screws provided.
- Terminate the cables to the Receiver as shown in the wiring diagram
- Connect the Live Neutral and Earth from the boiler (or existing thermostat supply) to the Live Neutral and Earth on the left side of the backplate.
- Connect the Live and Switched Live for your Room Thermostat connections to the Central Heating (CH) Normally Open (NO) and COM terminals on the connection box. If the cable is rigid, you should be able to insert them directly (Alternatively, use the Normally Closed (NC) terminal if it is required for your specific boiler).
- Connect the Live and Switched Live for your Hot Water connections to the Hot Water (HW) Normally Open (NO) and COM terminals on the connection box. If the cable is rigid, you should be able to insert them directly (Alternatively, use the Normally Closed (NC) terminal if it is required for your specific boiler).
N.B. Each manufacturer uses different connections on their boilers for the room thermostat and if you are unsure of the connections to your boiler, you should seek assistance from a qualified boiler installer.
Thermostat Installation

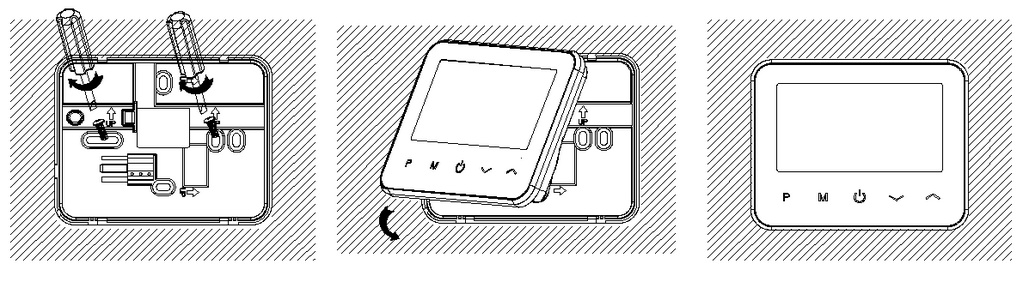

- Mark 2-hole positions on the wall using the back plate as a positioning template.
- Drill at the marked positions and insert a wall plug into each hole.
- Screw the thermostat back plate securely on the wall.
- Mount the Thermostat to the back plate
The Thermostat has two USB sockets to allow for mains power. One on the back, one on the left side. The rear mount could be used to hide the power feed in the wall cavity.
Linking the Thermostat to the Receiver unit
The Thermostat will need to be linked to the Receiver before it can be linked to your account. Ensure both units are on.
- Press and hold the RF Pairing button (4) on the receiver for 4 seconds, release and confirm the LED next to the button is flashing slowly.
- Ensure the Thermostat screen is off
- Press and hold the M button on the Thermostat until code and
shows on the screen, then press
button.
Wait for a while, when LED pm receiver stops flashing, the pairing has succeeded
Commissioning
Provisioning the Thermostat Receiver
Step1
Press and hold the WIFI Pairing button (3) on the Receiver
Step 2
Open the ESP BLE Provisioning app.
Step 3

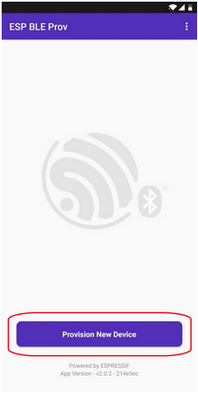

Select Provision a New Device (the first time you do this, allow notifications and location sensing)
Step 4
Scan the QR code on the unit, or select I don’t have a QR code
Using QR Code
Step 5a
Confirm the Wi-Fi indicator stops flashing and is solid on. If this does not occur,
No QR code
Step 5b
Select the device as it appears on the list and select provision.
Step 6
Select the Wi-Fi network the device will be on and enter the Wi-Fi password
Step 7

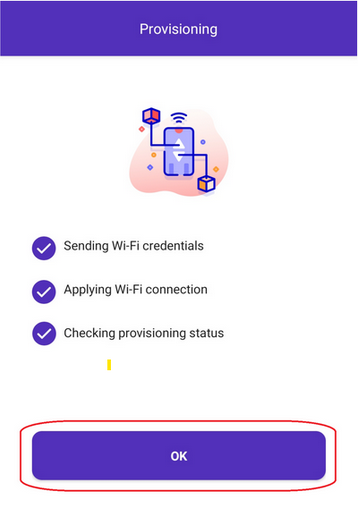

Select provision device and wait for the connection to be confirmed. Confirm the provisioning by selecting the OK button
Step 8
Open the Energenie Solutions web portal and sign into your account.
Step 9
Go to the My Devices tab
Step 10

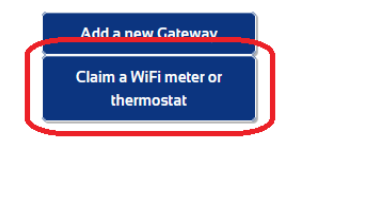

Select the Claim a Wi-Fi meter or thermostat option.
Step 11

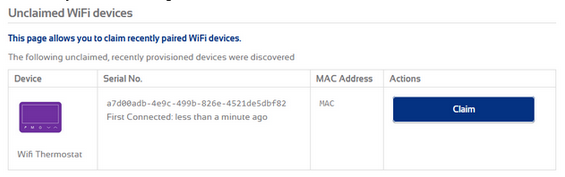

Check for your device using the serial number on the unit and select the Claim button
Step12

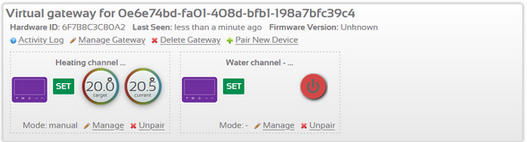

At this point, the device list will be populated with the device
The Thermostat is now ready for use.
Full User Guide
A Full User Guide describing both the installation of the WiFi Thermostat and its controls can be found ________
