3-Phase DIN rail Energy Monitor Quickstart Guide

MIHO118 QuickStart Guide





What is in the box

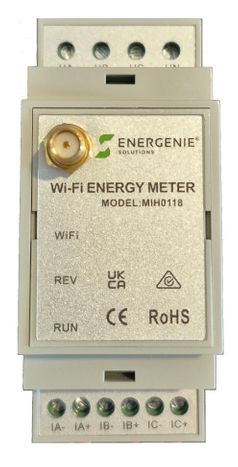

1x MIHO118 DIN rail 3-phase Energy Monitor
3x Energy monitor Clamp
1x Wi-Fi Antenna

Installation

Before you start, ensure there is space in your distribution box to install the MIHO118 DIN rail 3-phase Energy Monitor.  It will require the equivalent of two DIN rail RCD switches.  If there is not enough space, either a smaller second distribution unit alongside the existing distribution unit, or a larger distribution unit will be required to use the MIHO118 DIN rail 3-phase Energy Monitor.

Retain the box during installation as this is necessary for the commissioning of the meter.

Turn off and isolate your distribution box. Ensure you have space on your DIN rail for the MIHO118 and make a note of the serial number on the side of the meter.

1. Mount the MIHO118 to the rail

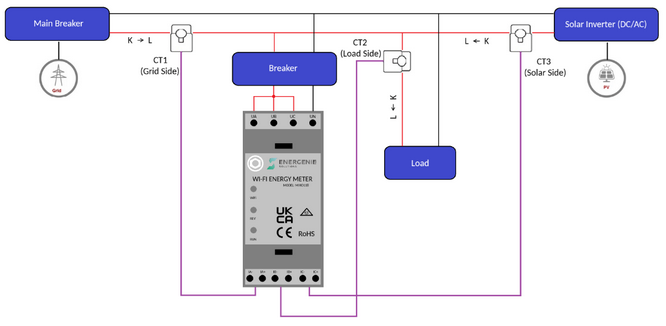

2. Clip the Energy Monitor Clamps to the following connections
   1. Mains In (Live line feeding from the mains toward the distribution box, before the PV feed)
   2. Live Load (Live line feeding to the main distribution box, after PV feed)
   3. Live from the PV system
3. Connect the live rail to the UA, UB, and UC terminals of the MIHO118
4. Connect the neutral rail to the UN terminal of the MIHO118


1. Turn on your distribution box.  Ensure the RUN (bottom) LED turns on and begins to blink

Commissioning (App) - Android Only

1. Install and open the app:
   • Scan the QR code below:

   • You will be directed to the Energenie Solutions Installer app

   • Once installed, you can open the app.

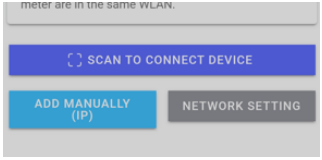

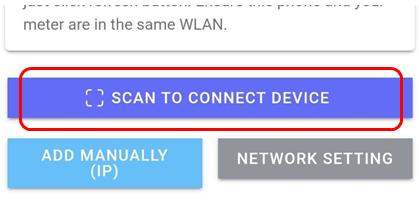

2. Select the SCAN TO CONNECT DEVICE option

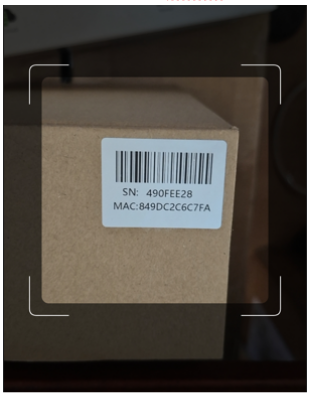

3. The camera will open and a box will appear in the middle.  Move the phone until the barcode on the box is centred:

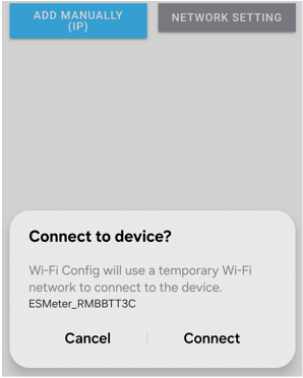

4. Once scanned, you will be returned to the main page with a pop-up saying Connect to device?

   Select Connect to access the Energy Meter

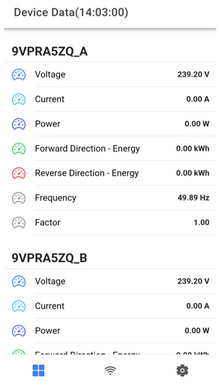

5. You will be taken to the device’s Data page. Select the symbol to go to the device ‘s settings page

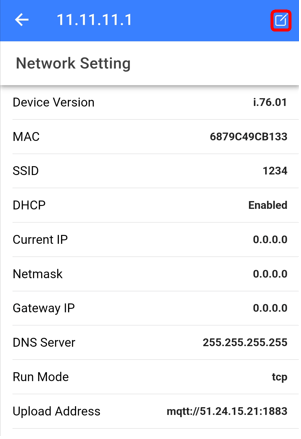

6. Once on the settings page, select the option at the top right of the page to access internet settings:


7. Select the SSID line to choose the router to connect to:

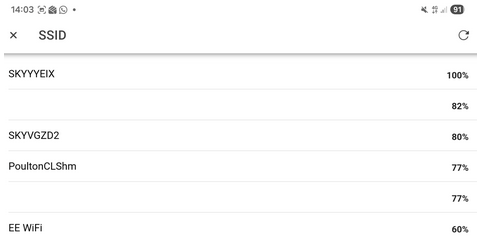

8. A list of available routers will be shown:

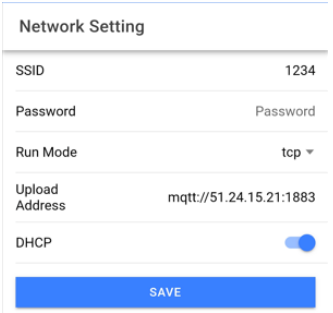

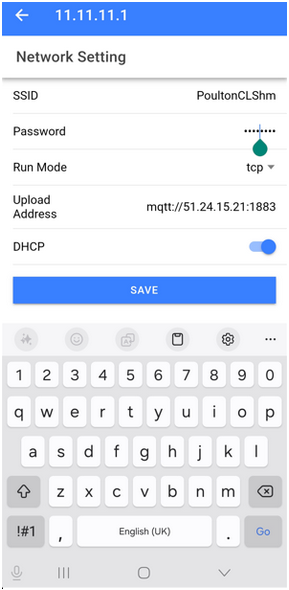

9. When you select the Router, you can then enter the password and select save:

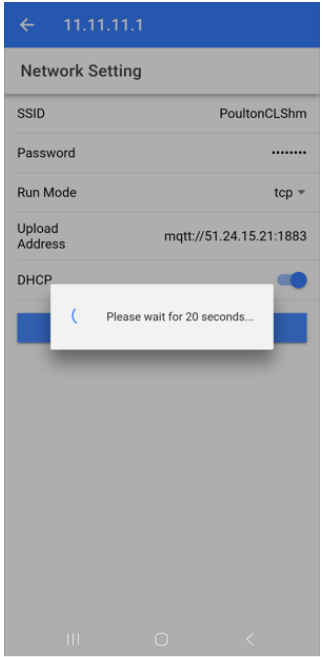

10. You will receive a pop-up saying to wait 20 seconds.


11. When the unit is linked, you will be returned to the provisioning page and can begin again with the next unit.


Claiming your WiFi Energy Monitor

1.  Log into your Energenie Solutions portal
2. Go to the My Devices tab.
3. Select the Claim a Wi-Fi meter or thermostat option.

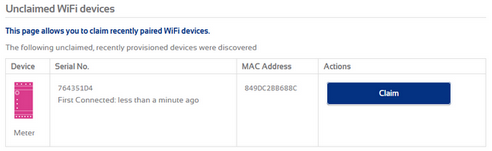

4. Check for your device using the serial number on the unit and select the Claim button

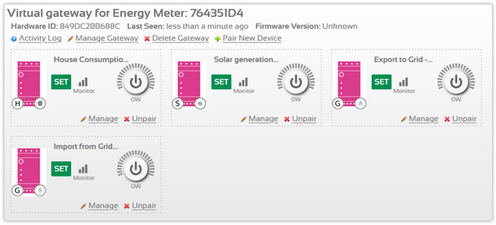

5. At this point, the device list will be populated with 4 device tiles


Ensure that the meters are providing outputs on the display just below the power symbol on each tile.

If the data is visible as you would expect, the unit is ready to use.

Full User Guide

For the full user guide, please follow the link:  https://sandal.zendesk.com/hc/en-us/articles/34692581617693-3-Phase-DIN-rail-Energy-Monitor-Full-user-Guide
