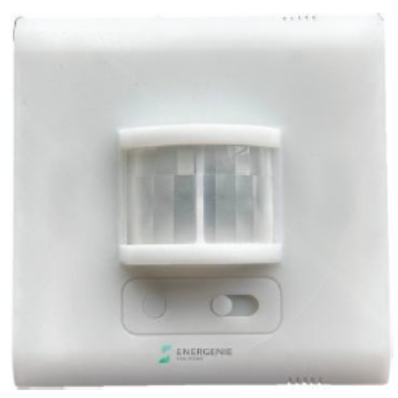

Powered Motion Sensor Technical Specification

Mounting:                                     1-gang recessed or surface mounted pattress box (minimum depth 20mm)

Dimensions:                                  80x80x45mm

Power Supply:                               240V AC @ 2A max

Radio:                                            434.3 MHz ISM band

Transmission range:                      30m+ (open space)

Modulation:                                  FSK, Manchester Encoded

Operating Temperature:               -20C to +50C

Mounting Height:                         Minimum 1.5m, suggested 2.3m

Sensor Type:                                 Body heat via Passive Infrared sensor (PIR)

Sensor range:                                2.5m at mounting height 2.3m

Sensor sensitivity setting:             Low / High (selected based on environment)

Compatibility:                               MiHome MIHO001

Indicator:                                      LED mode and status indicator

IP rating:                                       IP40
