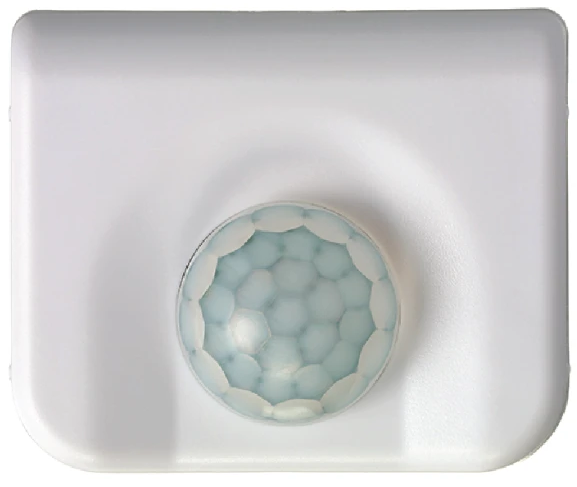

Introduction
Thank you for purchasing the MiHome PIR Motion Sensor from Energenie. This manual will take you through product set-up, operation and key features as well as providing troubleshooting tips.
For more information on Energenie’s range of MiHome smart products please visit https://energenie4u.co.uk/mihome/the_range/
In the Box:
- 1x Motion Sensor
- 1x Mounting Accessories
- 1x AA Battery
- 1x Quickstart Guide
Key Features
Report motion sensed in covered area
High/Low sensitivity options for differeing activity levels
Notifications when motion sensed
Safety Reliability & Warranty
Introduction
If you do not install and use in accordance with this guide (or the quick start guide) the warranty will be invalidated and Sandal Plc will not be liable for any damage or loss whatsoever, including indirect loss, damage to property or personal injury.
Please also do not leave packaging material lying around as children may be tempted to play with it, which could be dangerous.
Environment
This product is intended for domestic, commercial and light industrial use only and must only be used in dry areas indoors, and protected from moisture and water ingress. Please also see the product specification section in this guide for additional environmental considerations.
Nearby heat sources
The product is designed to work within a particular ambient temperature range, as specified in the product specification section of this guide. Keep the product away from heat sources which could raise the local temperature around the product to above its design operating ambient temperature.
Reliability
Your MiHome products rely on a good signal between themselves and the MiHome Gateway, and good internet connectivity to function as intended. If the internet connection is poor, or the product is out of range of the Gateway the reliability of the product will be impacted. It is therefore recommended not to rely on the product for remote switching in applications where the loss of internet could lead to a hazardous situation occurring.
Interference from other radio transmitting products
To mitigate the risk of electrical interference to the product which may result in it not working as intended please keep other electronic devices with radio transmitters, or appliances with motors, fans etc away from the product. A 1 m separation distance is a general rule of thumb.
Disassembling the product
Do not disassemble the product as it does not contain any parts that can be serviced. If it arrives faulty or develops a fault while within warranty please return the product to where it was purchased from.
Other Notices
THIS DEVICE AND ASSOCIATED SOFTWARE (INCLUDING FIRMWARE) ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH-RISK APPLICATIONS"). YOU AGREE AND ACKNOWLEDGE THAT YOU HAVE NO LICENSE TO, AND SHALL NOT (AND SHALL NOT ALLOW A THIRD PARTY TO) USE THE PRODUCT IN ANY HIGH-RISK APPLICATIONS, AND WHERE PERMITTED BY LAW SANDAL PLC SPECIFICALLY DISCLAIMS ANY WARRANTY REGARDING, AND ANY LIABILITY ARISING OUT OF, HIGH-RISK APPLICATIONS.
Getting Started
Preparing your Motion Sensor for Setup
You will need:
1x Flat-headed Screwdrver
1x Philips Screwdriver (optional)
Install the Battery
Remove the cover on the compartment of the transmitter using a small coin twisted in the slot between the two halves of the housing and insert the battery - observing the correct polarity.
Sensitivity Setting

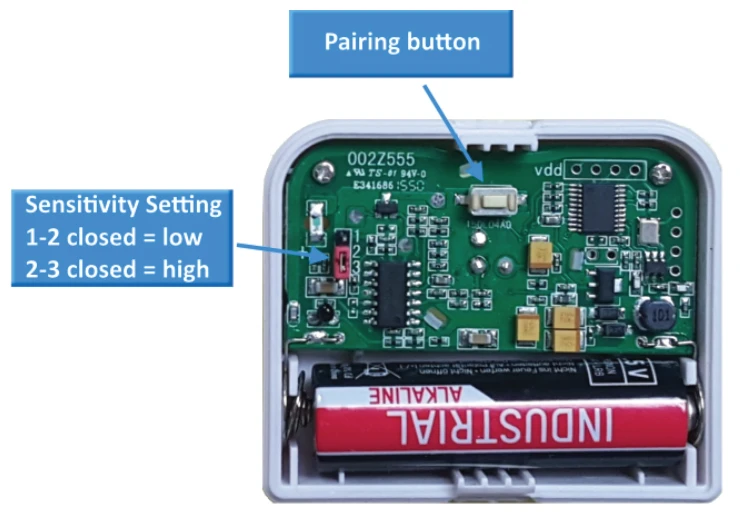

Select the sensitivity for the motion detection to high (default) or low. This can be done with the small red jumper on the circuit board as indicated in the diagram above. You may want to use the lower sensitivity setting if you are experiencing unwanted triggering e.g. by pets. Replace the cover once the following Mi|Home Network pairing installation process has been completed.
Pairing the Motion Sensor
Your Motion Sensor needs to be paired with the Mi|Home Gateway before it can be used. You can pair your Motion Sensor with the MiHome Gateway before you actually physically install it on your wall or ceiling.
Please ensure that your device is in range of the Gateway when you pair it. We suggest 10m and as unobscured by furniture or walls etc. as possible. You have two options to pair your Motion Sensor to the Gateway: either via a browser on a PC or smart device or via the Mi|Home App.
You will need to have created an account and already installed the Mi|Home Gateway.
Set Up & Control using the MiHome App
Pairing the Light Switch to your MiHome Gateway
Step 1

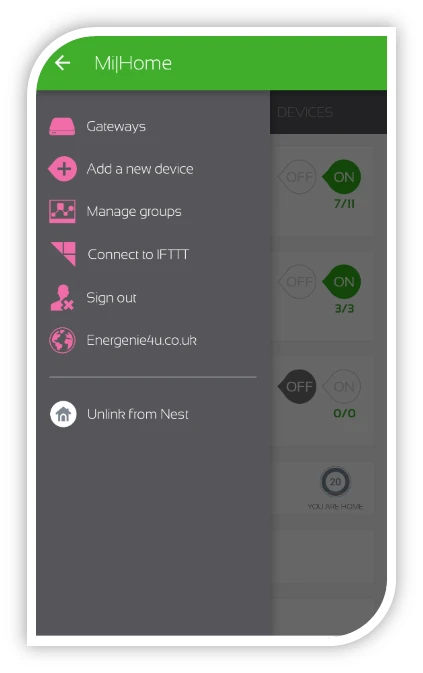

Log into your MiHome account, open the app menu and select Add a new device.
Step 2

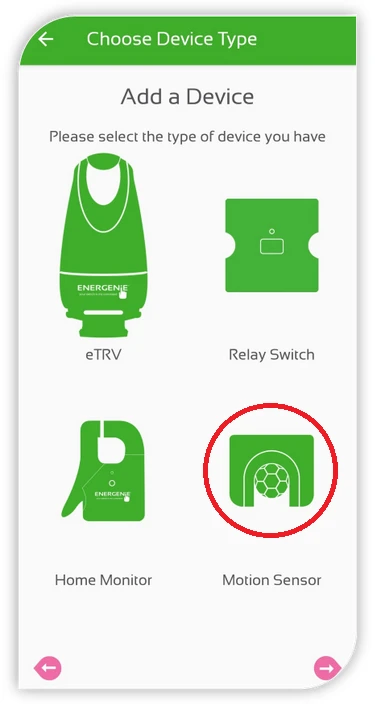

Select the Motion Sensor Option from the list of devices shown.
Step 3

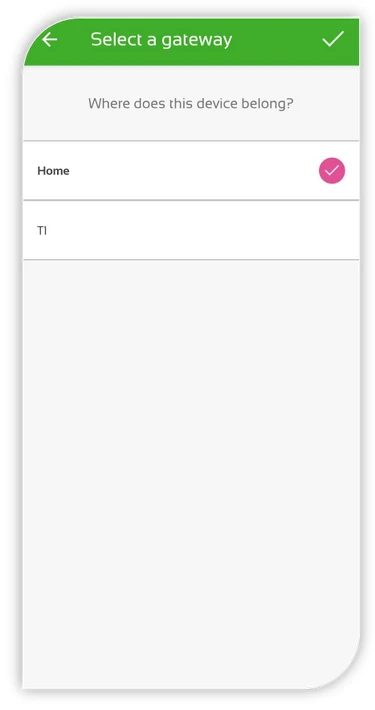

Select the MiHome Gateway you want to pair the MIHO032 PIR Motion Sensor to. If you have more than 1 Gateway installed, each will show in this screen. Select the to confirm the selection.
Step4

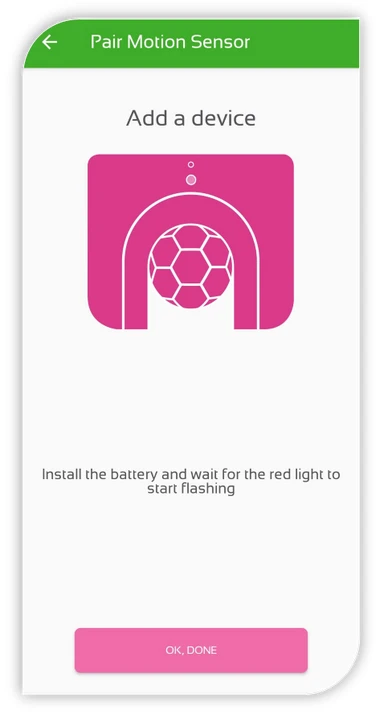

Confirm the battery has been fitted correctly. Select OK, Done once happy that the battery is correctly fitted.
Step5

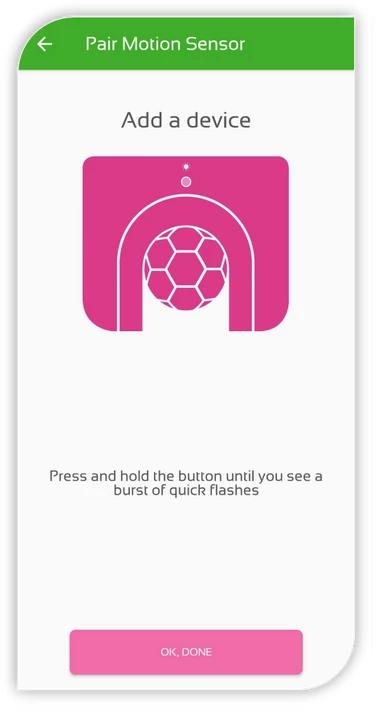

Press and hold the pairing button until the indicator LED blinks rapidly. Select OK, Done once the flashing has stopped.
Step 6
Enter a name for your device and select the at the top right to confirm the name
Step 7

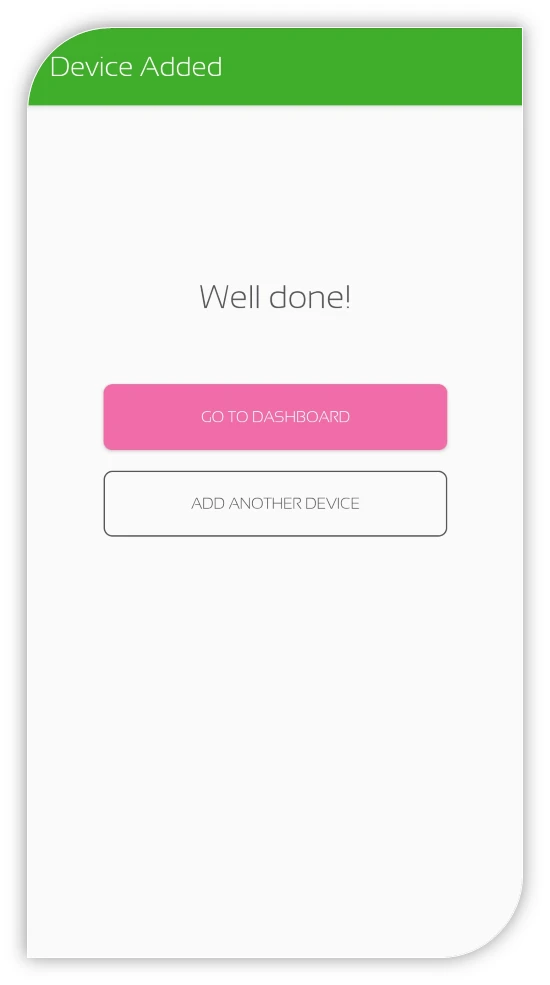

Select Go To Dashboard to start controlling your new device, or alternatively, select Add a New Device to pair another device.
Operating your PIR Sensor
Navigating the Dashboard

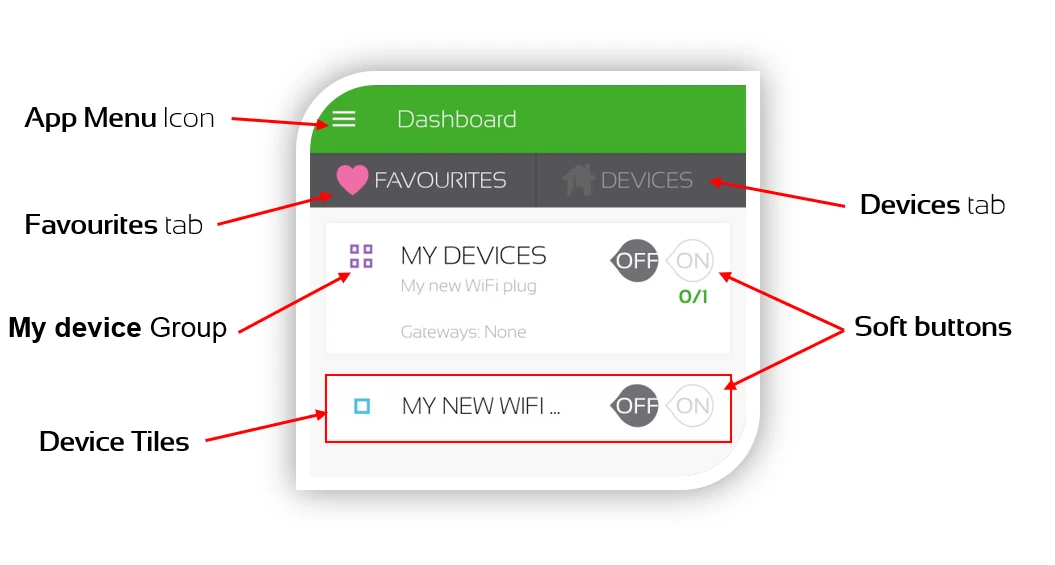

The dashboard is the place from where you operate your MiHome products when using the app. A description of each of the areas is given below.

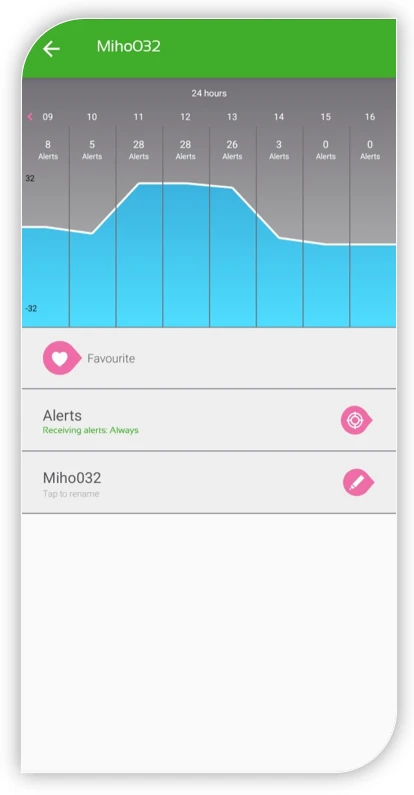

Device Menu
The PIR Motion Sensor has the following options to choose from, which are explained in detail in the next sections of this guide.
- Events Log Graph
- Add/Remove from the favourites tab
- Set Phone Alerts
- Name/change name for your device
To add or remove a device from the favourites tab of the dashboard simply tap on the heart icon next to Favourite.
Alerts (set notification pushes on your phone)
Step 1

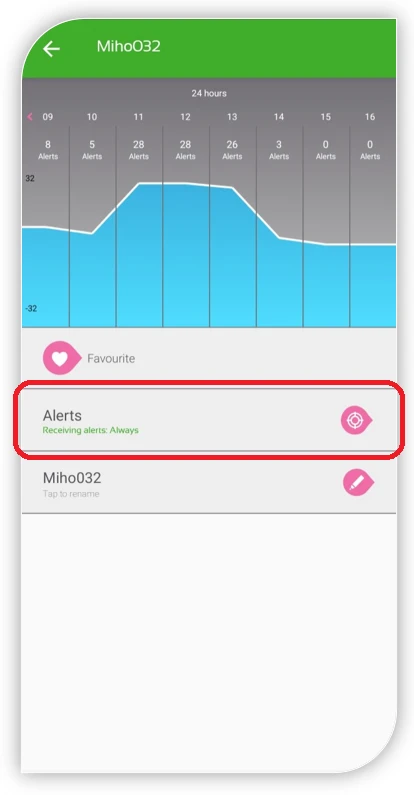

Tap on the Alerts option from the Device menu.
Step 2

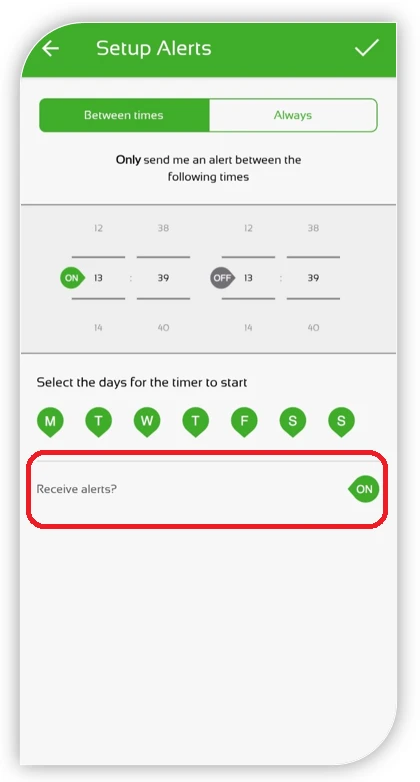

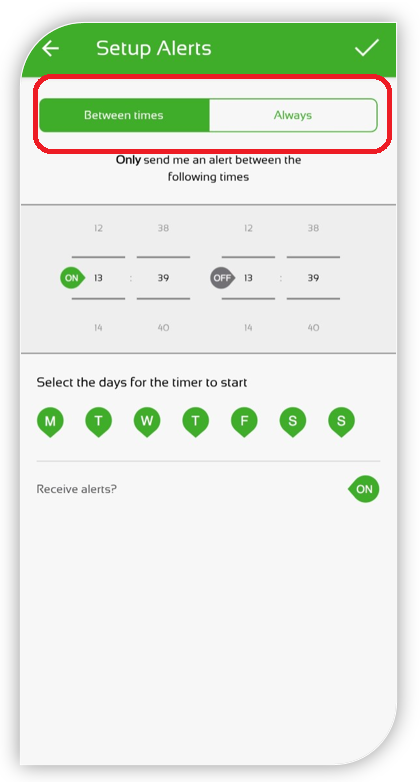

Select one of two options; Between timers and Always
Between timers

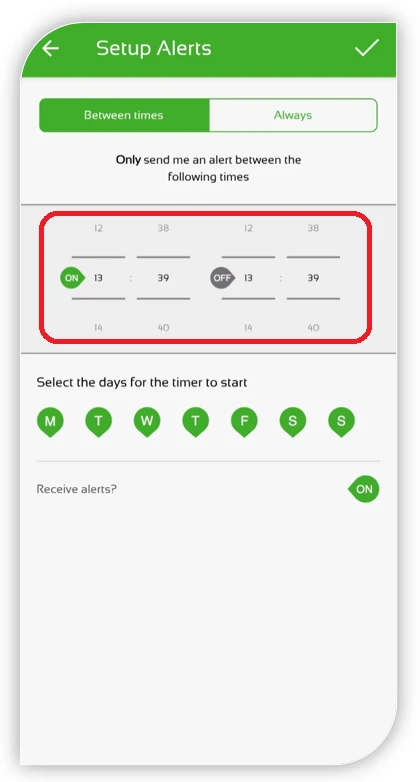

Select the times between which you wish to receive alerts by dragging the hour and minute dials to the desired ON and OFF times.

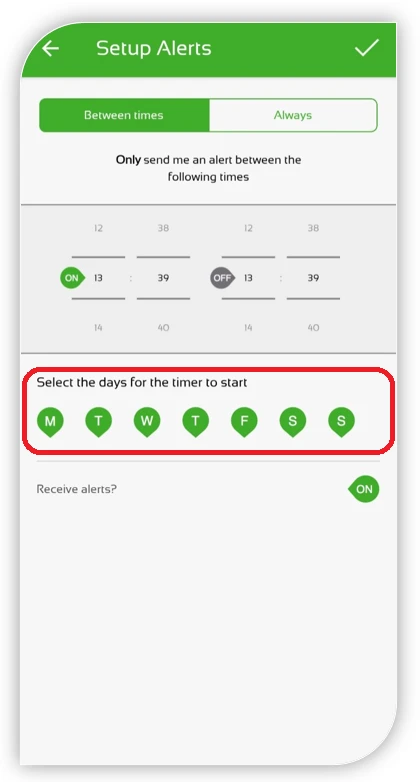

Select the days you wish to receive alerts.
Turn the alerts ON or OFF.
Confirm the selection by selecting the at the top right of the page.
Always

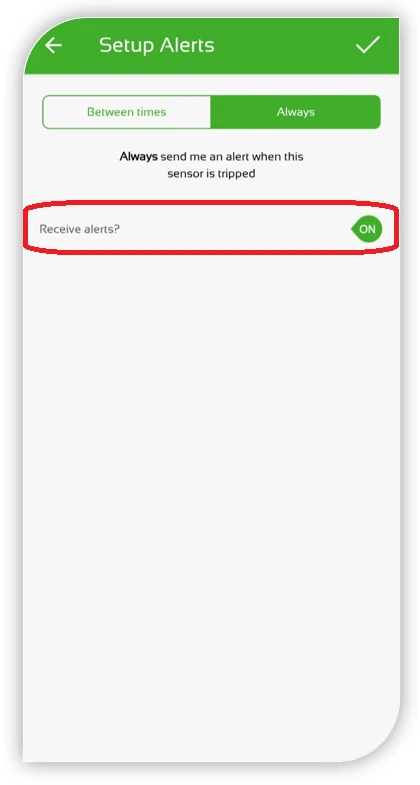

Turn the Alerts ON or OFF
Confirm the selection by selecting the at the top right of the page.

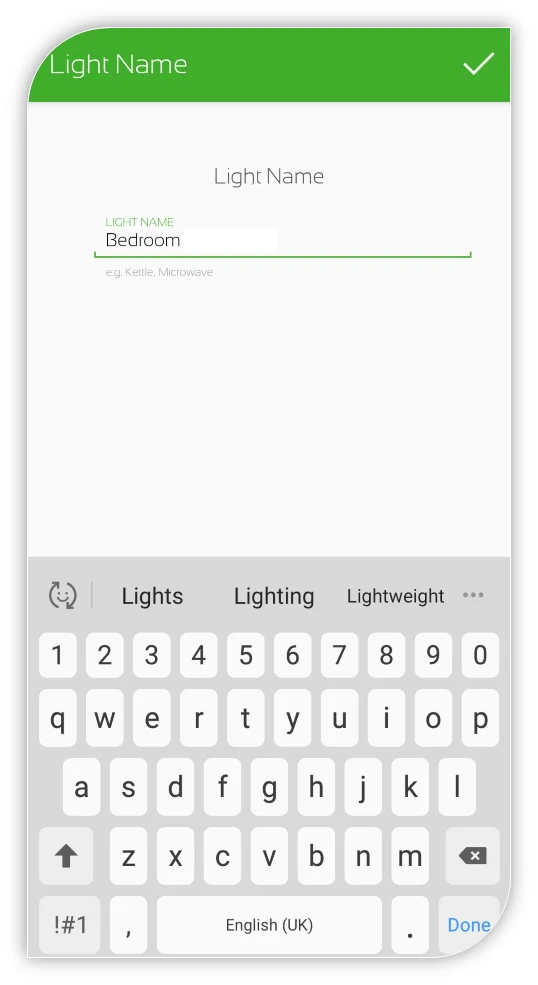

Rename your Device

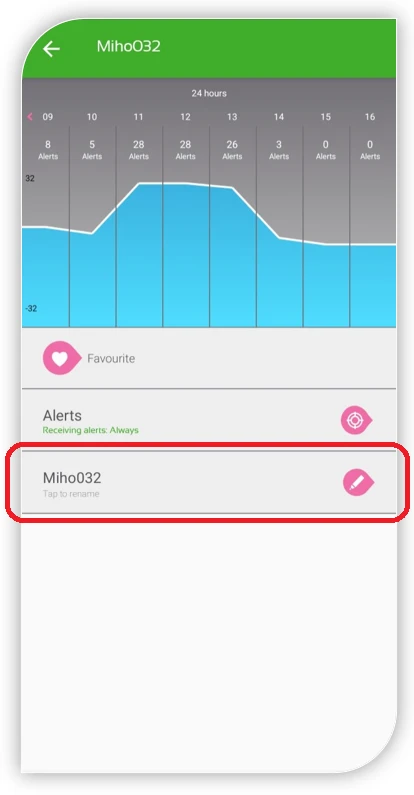

To rename any device, open the device’s options menu and tap on the tile which displays the name of the device. You can then change the name in the next screen.
Device Triggers
Once the MIHO032 is on your account, you can set triggers on any of your Control Only or Control and Monitor devices. The steps for setting up triggers can be found in the user manuals for the devices you wish to use them on.
Set Up & Control using the MiHome Web Portal
Pairing the Sensor to your MiHome Gateway
Step 1
Go to the MiHome Web portal (https://mihome4u.co.uk).
Step 2

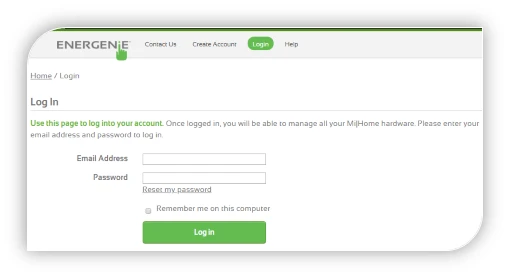

Select the Login tab and enter your login Email address and Password.
Step 3

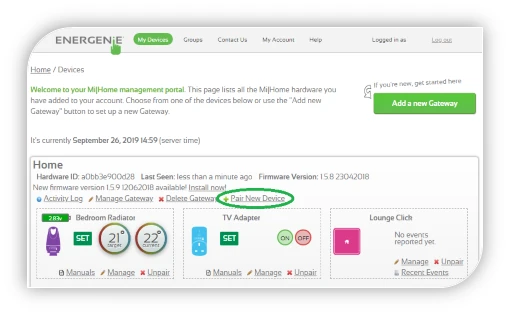

Once signed in, go to My Devices and select Pair New Device from the gateway dashboard.
Step 4

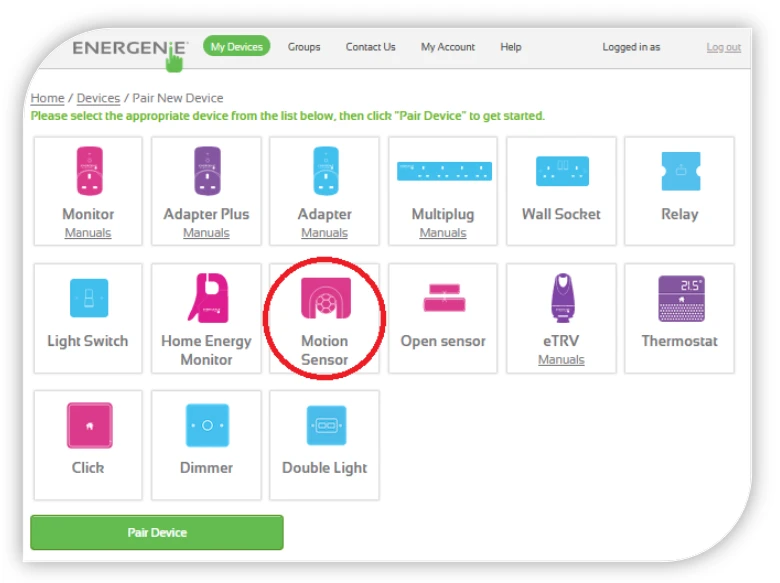

A new window will open showing images of each product that can be paired. Select the Adapter from the devices available and confirm by selecting the Pair Device button.
Step 5
A small pop-up window will appear which provides instructions to be followed.
Select the Start Pairing button on screen, then press and hold the pairing button on the Sensor for 5 seconds until the LED above the button blinks rapidly. When successfully paired, a device tile will appear on the device menu.
Step 6

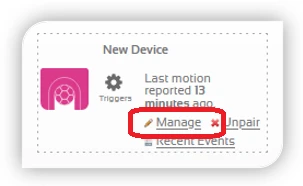

To give the Sensor a unique identifying name, select Manage on the device tile.
Step 7

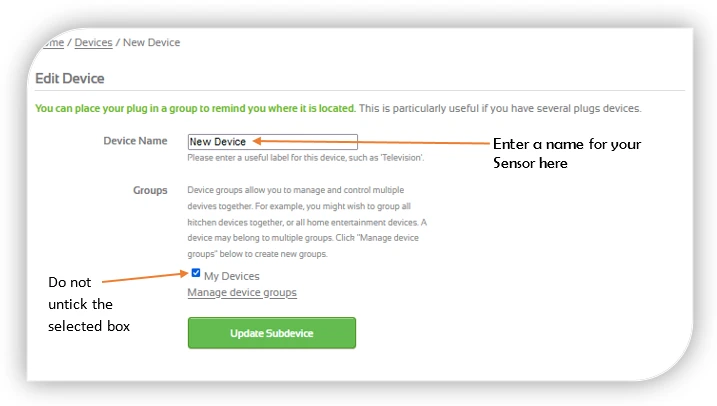

Enter a new name in the Device Name box and confirm the new name by selecting the Update Device button.
Note: do not remove the tick mark from the Groups section
At this point your Sensor is paired to your MiHome account and ready to use.
Web Portal Control

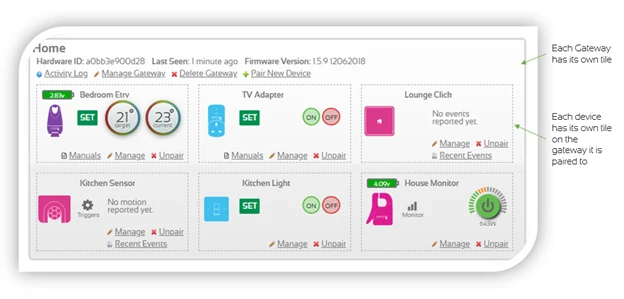

Dashboard layout description

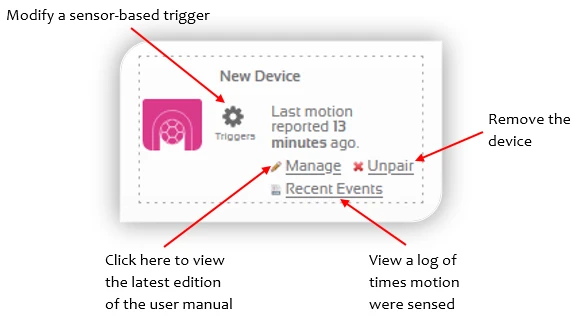

Each device tile provides information and control options specific to that device.
Set a Trigger

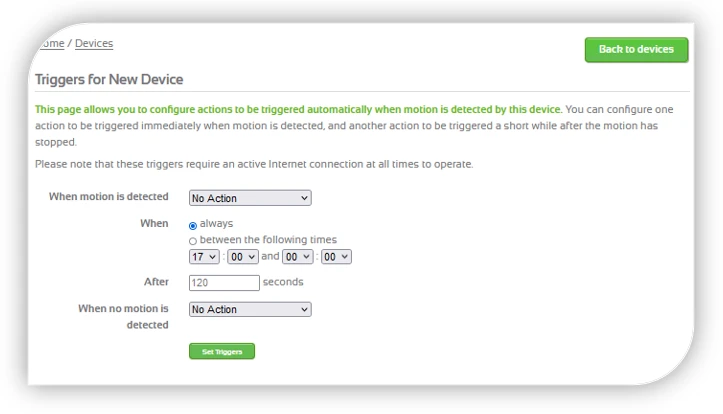

You can create a single trigger from the web portal.
Step 1

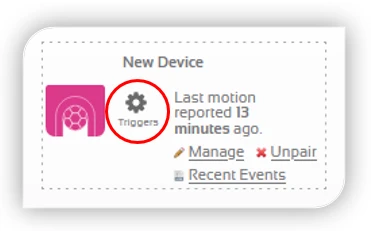

Select the Triggers option from the device tile.
Step 2

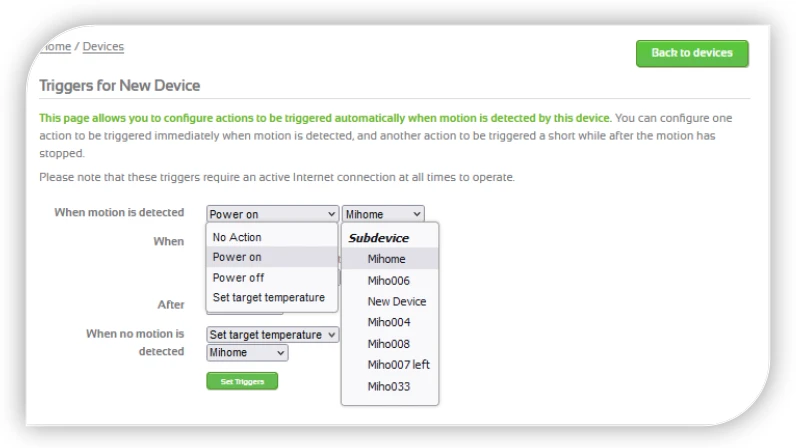

Set what will happen when motion is detected. You can set an action and subdevice (paired device) for the action to occur on.
No action
When motion is sensed, no action will occur
Power On
When motion is sensed, the selected subdevice will turn on. An on command will not be possible for the MIHO013 eTRV as this device remains on at all times.
Power Off
When motion is sensed, the selected subdevice will turn off. An on command will not be possible for the MIHO013 eTRV as this device remains on at all times.
Set target temperature
When motion is sensed, the selected subdevice will be set to the target temperature set in the action. This can only be used with the MIHO013 eTRV and MIHO069 Thermostat.
Subdevice
Any device you have paired to your MIHO001 Gateway(s) or any MIHO109 WiFi adapter on your account. This will not show any sensors (MIHO032, MIHO033 and MIHO089).
Step 3

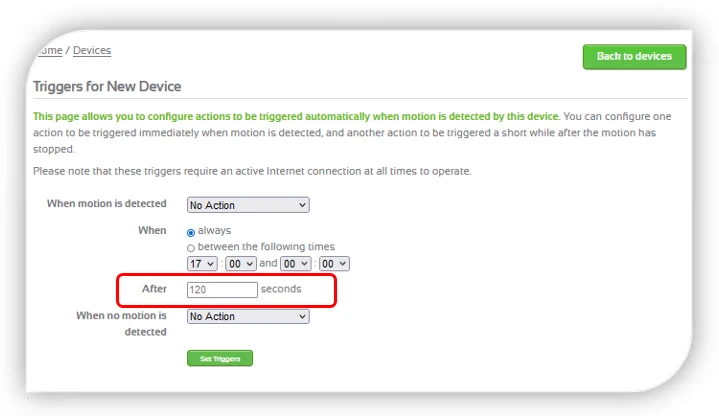

Set a delay to the trigger in the After fillable box.
This can be set in seconds for up to 1 day (86,400 seconds) and can be set to a minimum of 60 seconds.
Step 4
Set what will happen when motion is no longer detected by the sensor. You can set an action and subdevice (paired device) for the action to occur on. This is set the same way as when motion is detected.
Step 5

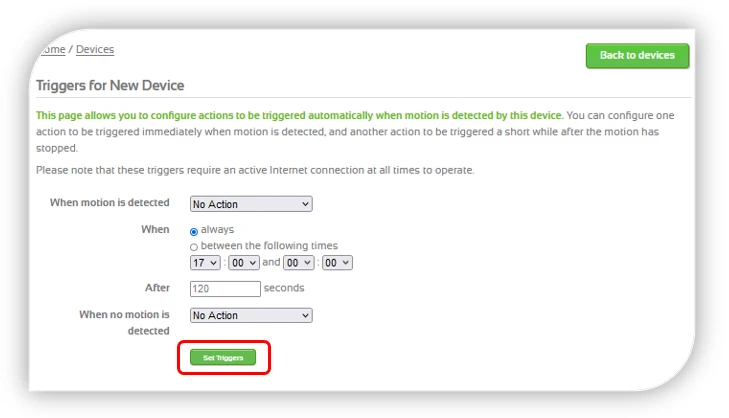

Confirm the setup of your trigger by selecting the Set Triggers option.
Unpairing your MIHO032 Motion Sensor
Using the MiHome App

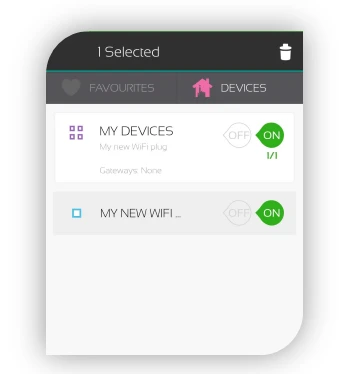

If you wish to un-pair your MiHome device, for example to move it to a new account, select the DEVICES tab then follow the steps below for the relevant phone type:
iOS

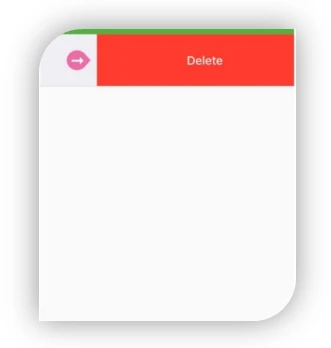

Tap and drag the device tile to the left then tap on Delete.
Android
Tap and hold the device tile and then tap the bin symbol which appears in the top right of the screen.
After un-pairing, please follow the factory reset procedure outlined below.
Using the MiHome Web Portal
If you wish to un-pair your MiHome device, for example to move it to a new account, select the My Devices tab then follow the steps below:
Step 1

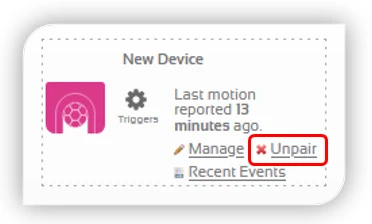

Select the x Unpair option on the device tile of the device you want to remove
Step 2

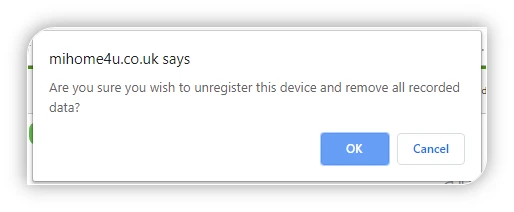

A pop-up window will appear. To confirm the device should be removed, select OK.
After un-pairing, please follow the factory reset procedure outlined below.
Troubleshooting
| Problem | Possible Causes | Resolution |
|---|---|---|
| The MIHO032 PIR motion sensor doesn't power up | No power for the MIHO032 PIR Motion Sensor (status LED doesn't flash after 5 seconds) | Replace the AA battery with a new battery |
| The Smart Adapter doesn't pair and continues to flash slowly | Interference from other radio transmitting devices. | Ensure that there are no other radio transmitting appliances, such as cordless phones within 50 cm of the PIR motion sensor. Once separated, please begin the pairing process again. |
| The PIR Motion sensor is out of range of the MiHome gateway |
|
Disposal
The crossed out wheelie bin symbol which is marked on your product indicates that the product must not be disposed of with regular household waste, but must be disposed of at your local recycling centre. You may also returned to Energenie for recycling at your convenience. Please visit our website for more information https://energenie4u.co.uk/support/weee_and_weeeco_information/
Product Specification
Power: 1x AA battery
Operating Temperature: - 5 oC to +55 oC
Radio: FSK protocol
Tx duty cycle: 10%
Operating Frequency: 434.4MHz
Protocol: OpenThingsprotocol (one way only)
Detection: Body heat via Passive Infrared (PIR)
Sensor Range (at 25˚C): If installed at 2.3m above the floor, PIR can trigger with a range of 3m
Operating temperature: -10°C to +35°C
Transmission range: 30m+ (open space)
LED lamp: Red blink = motion detected
Red blink twice = motion detected and message sent to Mi|Home network.
• Product Code: MIHO032
Registration of Product (Safety Alert Purposes Only)
Energenie products are tested by independent accredited laboratories to all applicable national and international standards, and manufactured under strict quality control procedures.
If our products are used as intended, in accordance with their user manuals, it is very unlikely that problems will occur with the product.
However we are not complacent and take our responsibility seriously to inform you, our customer should any product safety concerns arise which we need to advise you of.
To enable us to get in touch with you without delay please register your Energenie product with us at https://energenie4u.co.uk/about_us/contact_us/
We will not use your personal information for marketing purposes unless you explicitly opt in to receive such communications. You can find out more about our privacy policy and what we do with your personal data here https://energenie4u.co.uk/support/privacy_policy/.
Declaration of Conformity
We Sandal PLC, trading as Energenie Ltd, Work From Here, Millers Three, Bishop's Stortford, Essex, CM23 3DH
Declare under our sole responsibility as importer that the product:
Model: MIHO032
Description: PIR Motion Sensor
To which this declaration relates is in conformity with the applicable requirements of the following Union harmonisation legislation:
2014/53/EU Radio Equipment Directive (RED)
2012/19/EU Waste Electrical and Electronic Equipment (WEEE) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances (RoHS) Directive
EC/1907/2006 Regulation (EC) No 1907/ Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
Directive Recast
The unit complies with all essential requirements of the above referenced specifications and directives and has been issued a CE mark
The unit complies with all essential requirements of the above referenced specifications and directives and has been issues a UKCA mark
And is in conformity with the following standards:
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 62479:2010
ETSI EN 301 489-1 V2.2.0 (2017-03)
ETSI EN 301 489-3 V2.1.1 (2017-03)
ETSI EN 300 220-1 V3.1.1 (2017-02)
ETSI EN 300 220-2 V3.1.1 (2017-02)
The Technical Construction File required by the above Directives is maintained at the company headquarters at Work From Here, Millers Three, Bishop's Stortford, Essex, CM23 3DH
I hereby declare, on behalf of Energenie Ltd, that the equipment named above has been tested and found to comply with the relevant sections of the above referenced specifications. The unit complies with all essential requirements of the Directives.
Signed:
Name: C R Pittom
Position: Quality and Customer Technical Support Engineer
Place of signature: 5 Harold Close, the Pinnacles, Harlow Essex, ENGLAND, CM15 9TH
On: 24/10/2024
Copyright Notice
©2020 Energenie Ltd
Part No: MIHO032
Registered office: Claremont House, 1 Market Square, Bicester, Oxfordshire, United Kingdom, OX26 6AA
Version 2 24/10/2024
